                           CBB61 type AC Motor Running Capacitor
I¡¢Features:
The CBB61 Capacitor takes heavy-edge metallized. AI/Zn PP film or web-like fuse metallized PP film as dielectrie,Its components are assembled in flame-retardant ABS or PBT square crust, impregnated with flame-retatdant epoxy resin.It has high reliability and stability.
II¡¢Applications
   Broadly applied to starting and running of single-phase AC motors at 50Hz(60Hz)frequency for air conditioners fans,electric fans and exhaust fans ete.at comparatively low reted power.
III¡¢Technical Specifications
Standard:GB3667-1997,same asIEC 60252:1993
Technical features:
Climate type:40/70/21,40/85/21
Capacitance tolerance:¡À5%
Insulation resistance:¡Ý3000s
Dielectric dissipation factor:tg¦Ä¡Ü0.002(50Hz~100Hz)
Life expectancy:3000h(Class C)or10000h(Class B)
IV¡¢Application requirements:
Altitude:¡Ü3000m
Residual voltage in application:Less than 10%of rated voltage
Allowed maximum voltage:Less than 1.1 times of rated voltage
Permissible maximum current:Less than1.3 times of rated current

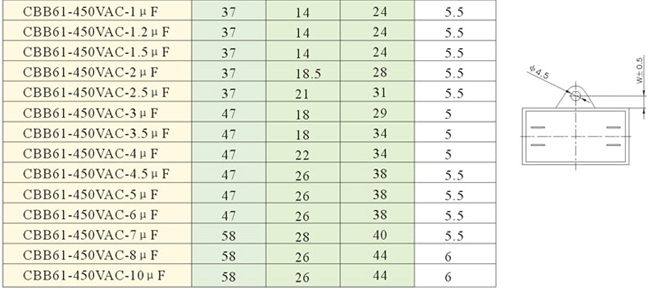

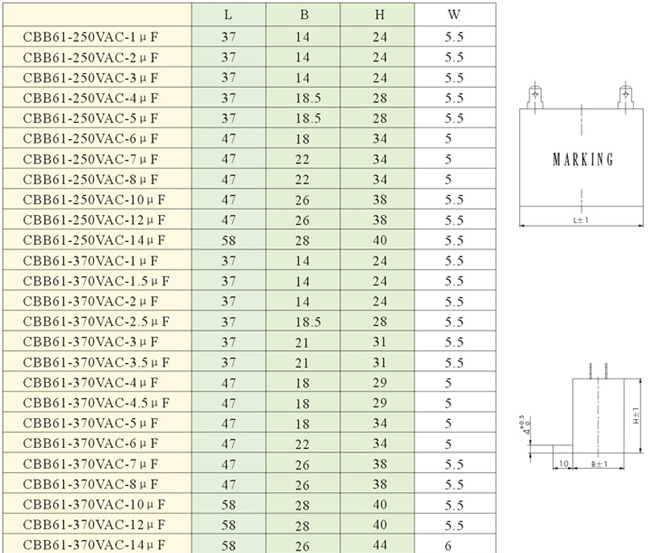

V¡¢Dimensions£¨mm£©
