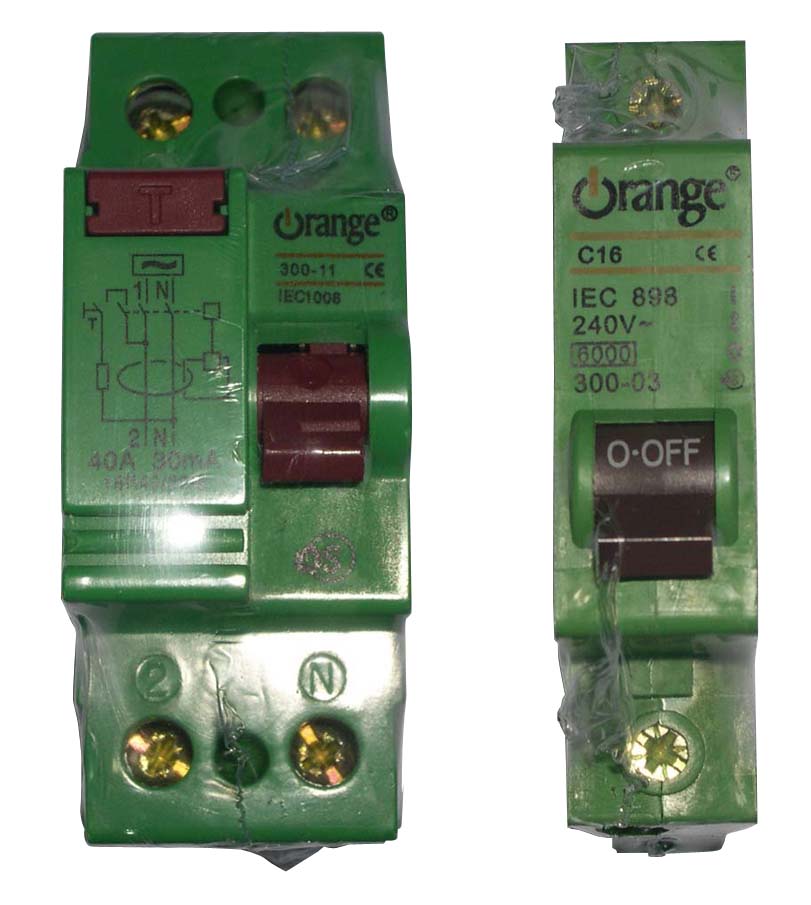

The Green F360 RCCB is in accordance with standards of IEC.,applying to the circuit of AC50/
60Hz, 240Vsingle phase, 415V three phases and below it for industrial and mining
enterprise, trade building, commerce and family. To mainly prevent electric fire
and personal casualt accident caused by personal electric shock or leakage of
electrified wire netting, this ELCB is a current-operated, fast leakage protector of pure electromagnetic type, which can break off fault circuit rapidly in order to avoid occurrence of accident. The item is precise in structure, less elements, without auxiliary power and high working reliability. The function of the switch won`t be influenced by ambient temperature and lightning. The mutual inductor of the item is used to test vector differential £¦#118alue of passing current, and produces a relevant output power and add it to the tripper in secondary winding, if the current of vector differential £¦#118alue of protected circuit of personal electric shock is up to or over leakage operating current, the tripper will act and cut off so that the item will take effect of protection. |
