Structural feature
1.Housing cast by 900T die-cast machine,featuring high
strength,compact stucture and smooth profile.
2.Reflector is made of high purity aluminum plate anodized,
polished.
3.Highly-transparent toughened glass shade,5mm thick,
arc-shaped,heat proof.
4.Stainless steel buckle with spring for operation,top-lift
cover for easy repair and maintenance.
5.Vertical and horizontal installation.Installation angle
adjustable from 0°-15°
6.Intermal bulb-replacement stucture for excellent water-and
dust-proof property.
Technical parameters
1.Protection rating:IP65
2.Housing's anti-corrosion property:class II
3.Working environment:-35℃～45℃
4.Lamp holder:E40
5.Electric shock-proof rating:class I
6.Power source:220V(±10%)/5OHz
7.Lamp:150W-400W high pressure sodium/metal halide bulb

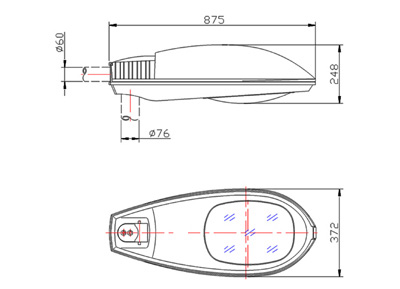

8.Packing size 865×380×315
|
