Specification:
Protection degree: IP65
Distributed light source: High pressure sodium lamp (150W-400W)
Rat. Voltage & Frequency: 220V¡À10%/50Hz-60Hz
Installation tube size:¦µ60-¦µ76mm
Material: Die casting aluminum
Height of installation: 9m-12m
Structural Features:
¡ñ LAMP BODY AND SHADE IS PRESSURE DIE-CAST ALUMINUM FEATURING HIGH STRENGTH, COMPACT AND LIGHT STRUCTURE.
¡ñ HIGHLY-TRANSPARENT TOUGHENED GLASS SHADE¡£

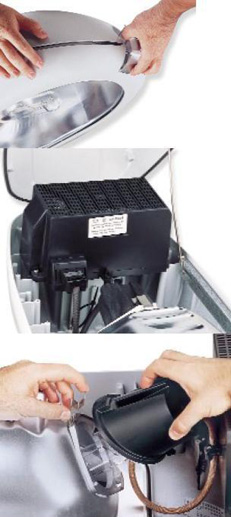

¡ñ LAMP REFLECTOR, HIGHLY-TRANSPARENT TOUGHENED GLASS SHADE, LAMP HEAD SHADE ARE GLUED UNITY BY SEALED GLUE, COMPOSE OF INTERNAL BULB-REPLACEMENT STRUCTURE, ADJUST BRACE OF LAMP HEAD, COULD INSTALL DIFFERENT FUNCTION(250W-400W)SODIUM LAMPS,COMBINED WITH LAMP HEAD SHADE AND REFLECTOR BY ELASTICITY STAINLESS STEEL BUTTON, EASY REPAIR AND CHANGE LIGHT BULB.
¡ñ AIR PURITY BREATH MACHINE IN REFLECTOR, ASSURE HIGH BRIGHT OUTPUT AND DECREASE WEAK OF REFLECT FACTORS¡£
¡ñ LAMP UNLOADED BY ALUMINUM BUTTON, EASY INSTALLATION AND REPAIR.
¡ñ LAMPS AND LANTERNS PRESS TIGHTLY BY PRESS BOARD, EASY INSTALLED BY TWO WAYS OF INSTALLATION, ONE IS PERPENDICULAR INSTALLATION, ANOTHER IS INSTALLED ON LEVEL, HAS ANGLE ADJUSTMENT FITTING, COULD ADJUST UP AND DOWN ¡À3¡ãON LEVEL.
¡ñ SUIT FOR DIFFERENT OCCASIONS.

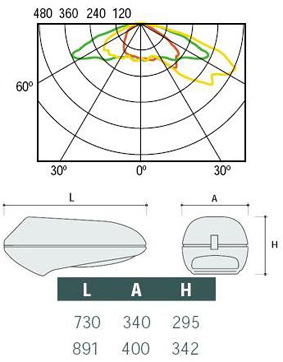

Graph of light distribution:
|
