GFCI

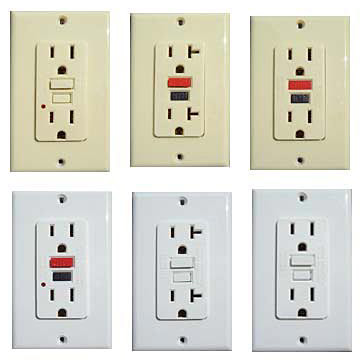

Product Name: Ground-Fault Circuit Interrupters GFCI
SPECIFICATIONS
*Amperage: 15A/20A
*Supply Voltage: 125VAC/60HZ
*Voltage Range: 102-132VAC
*Trip Level: 4-6mA
*Trip Time: 0.025seconds
*Max Humidity: 95%
*Operation Temperature: -35℃ to +66℃

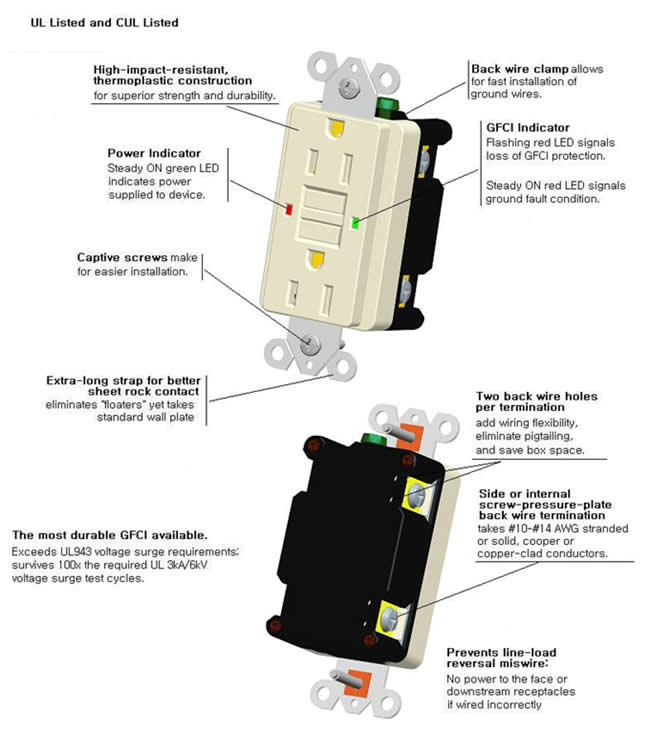

FEATURES AND BENEFITS
*Meets new UL 2006 requirements,UL File No.E256800
*UL Standard 943 Class A(GFCI) and 498(Receptacle)
*2-pole,3-wire grounding duplex receptacle
*Impact-resistant thermoplastic cover and body
*More resistance to electrical noise and to moisturecorrosion
*Versions available with matching TEST and RESET buttons and traditional black and red models
*Immediate indication(RED LED light) if GFCI has lost the ability to protect
APPLICATIONS
*Kitchen, Bathroom, Pool, Hotels and resorts, Retail locations, Business offices, Apartments and condos.
|
