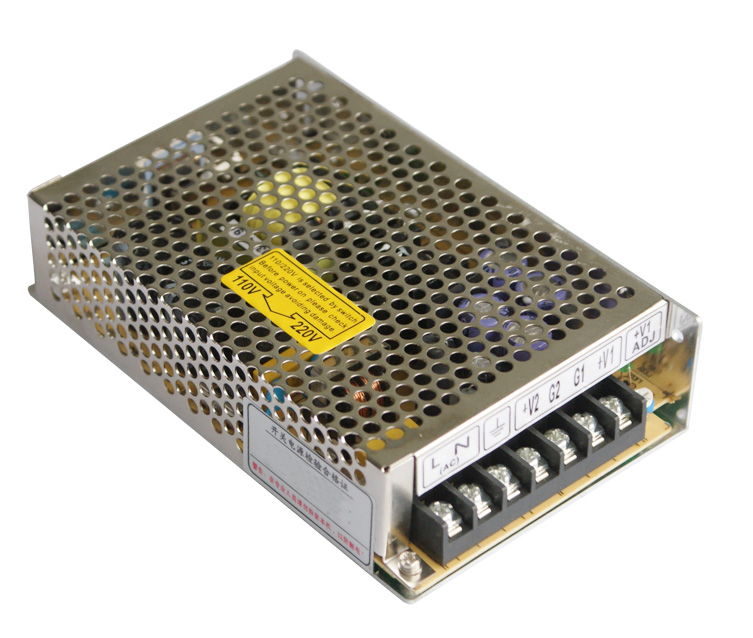

D-50 Dual Output Power Supply
| INDEX TYPE |
D-50A |
D-50B |
| DC VOLTAGE |
5V |
12V |
5V |
24V |
| VOLTAGE ADJ.RANGE |
+10%--5% |
|
+10%--5% |
|
| VOLTAGE TOLERANCE |
¡À2% |
+5%-8% |
¡À2% |
¡À8% |
| RATED CURRENT |
6A |
2A |
6A |
1A |
| CURRENT RANGE |
1-6A |
0.3-2A |
1-6A |
0.2-1A |
| RATED POWER |
54W |
54W |
| EFFICIENCY(Typ.) |
72% |
72% |
| RIPPLE&NOISE(MAX.) |
50mvp-p |
100mvp-p |
50mvp-p |
100mvp-p |
| LINE REGULATION |
¡À0.5% |
¡À1% |
¡À0.5% |
¡À1% |
| LOAD REGULATION |
¡À0.5% |
¡À5% |
¡À0.5% |
¡À8% |
| VOLTAGE RANGE |
85-132VAC/170-264VAC 47-63Hz 240-370VDC |
| AC CURRENT |
1.3/115VAC 0.65A/230VAC |
| INRUSH CURRENT(MAX.) |
cold inrushed curren 18A/115VAC 36A/230VAC |
| LEAKAGE CURRENT |
<0.5mA/240VAC |
| OVERLOAD PROTECTION |
105-150% Type £ºCurrent limitation auto recovery |
| OVERVOLTAGE PROTECTION |
-- |
| OVERTEMPERATURE PROTECTION |
-- |
| TEMP.COEFFICIENT |
¡À0.03%£¯¡æ(0-50¡æ) |
| SETUP.RISE,HOLD TIME |
200ms 50ms 20ms /230VAC |
| WITHSTAND VOLTAGE |
I/P-O/P:3KVACI/P-FG:1.5KVACO/P-FG:0.5KVAC |
| ISOLATED RESISTOR |
I/P-O/P,I/P-FG,O/P-FG:500VDC/100M¦¸ |
| STORAGE TEMP.HUMIDITY |
0-50¡æ@100%,-10¡æ@80%,60¡æ@60%,20%-90%RH |
| WEIGHT |
0.45Kg |
| SAFETY STANDARDS |
UL1012 |
| EMC |
CLSPT22(EN55022)CLASSB,IEC801-2,3,4.IEC555-2. |
|
Note£º
1.All parameters NOT specially mentioned are measured at 230VAC input ,rated load and 25 of ambient temperature.
2.Tolerance:includes set up tolerance,line regulation and load regulation
3.Ripple&noise are measured at 20MHZ of bandwidth by using a 12 twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
4.line regulation:min&max voltage of the rated load.
5.load regulation:load from 0 to 100%.
6.Size:159x97x38 |
|
