| Electrical Items >> Motor Protector >> 3RV(DZS8)Motor Protection Circuit Breaker

3RV1-A

3RV1-B

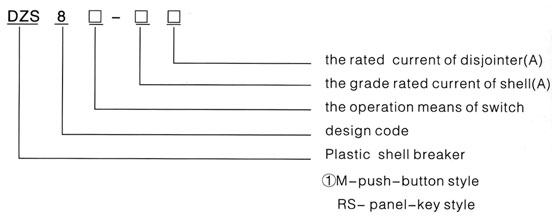

The model No. and meaning

Main technical parameters :

standard Three-phase Motor 4Pole 400V AC		The commuting range of overload tripping device	Circuit breaker Order NO.	AC Contactor Order NO.	Specification	Short-circuit treaking capacity /q ka
rated power	Motor Current	The commuting range of overload tripping device	Circuit breaker Order NO.	AC Contactor Order NO.	Specification	Short-circuit treaking capacity /q ka
0.06	0.2	0.14-0.2	3RV1011-0BA10	3RT1015-1AP01	SOO	50
0.06	0.2	0.18-0.25	3RV1011-0CA10	3RT1015-1AP01	SOO	50
0.09	0.3	0.22-0.32	3RV1011-0DA10	3RT1015-1AP01	SOO	50
0.09	0.3	0.28-0.1	3RV1011-0EA10	3RT1015-1AP01	SOO	50
0.12	0.4	0.35-0.5	3RV1011-0FA10	3RT1015-1AP01	SOO	50
0.18	0.6	0.45-0.63	3RV1011-0GA10	3RT1015-1AP01	SOO	50
0.25	0.85	0.55-0.8	3RV1011-0HA10	3RT1015-1AP01	SOO	50
0.25	0.85	0.7-1	3RV1011-0JA10	3RT1015-1AP01	SOO	50
0.37	1.1	0.9-1.25	3RV1011-0KA10	3RT1015-1AP01	SOO	50
0.55	1.5	1.1-1.6	3RV1011-1AA10	3RT1015-1AP01	SOO	50
0.75	1.9	1.4-2	3RV1011-1BA10	3RT1015-1AP01	SOO	50
0.75	1.9	1.8-2.5	3RV1011-1CA10	3RT1015-1AP01	SOO	50
1.1	2.7	2.2-3.2	3RV1011-1DA10	3RT1015-1AP01	SOO	50
1.5	3.6	2.8-4	3RV1011-1EA10	3RT1015-1AP01	SOO	50
1.5	3.6	3.5-5	3RV1011-1FA10	3RT1015-1AP01	SOO	50
2.2	5	4.5-6.3	3RV1011-1GA10	3RT1015-1AP01	SOO	50
3	6.5	5.5-8	3RV1011-1HA10	3RT1015-1AP01	SOO	50
4	8.5	7-10	3RV1011-1JA10	3RT1016-1AP01	SOO	50
5.5	11.5	9-12	3RV1011-1KA10	3RT1017-1AP01	SOO	50
7.5	15.5	11-16	3RV1011-4AA10	3RT1025-1AP01	SO	50
7.5	15.5	14-20	3RV1011-4BA10	3RT1025-1AP01	SO	50
11	22	17-22	3RV1011-4CA10	3RT1026-1AP01	SO	50
11	22	20-25	3RV1011-4DA10	3RT1027-1AP01	SO	50

Tripping grade : 10 , matching style 2 : /q =50KA

standard Three-phase Motor 4Pole 400V AC		The commuting range of overload tripping device	Circuit breaker Order NO.	AC Contactor Order NO.	Specification	Short-circuit treaking capacity /q ka
rated power p kw	I Motor Current A	The commuting range of overload tripping device	Circuit breaker Order NO.	AC Contactor Order NO.	Specification	Short-circuit treaking capacity /q ka
0.06	0.2	0.14-0.2	3RV1011-0BA10	3RT1015-1AP01	SOO	50
0.06	0.2	0.18-0.25	3RV1011-0CA10	3RT1015-1AP01	SOO	50
0.09	0.3	0.22-0.32	3RV1011-0DA10	3RT1015-1AP01	SOO	50
0.09	0.3	0.28-0.1	3RV1011-0EA10	3RT1015-1AP01	SOO	50
0.12	0.4	0.35-0.5	3RV1011-0FA10	3RT1015-1AP01	SOO	50
0.18	0.6	0.45-0.63	3RV1011-0GA10	3RT1015-1AP01	SOO	50
0.25	0.85	0.55-0.8	3RV1011-0HA10	3RT1015-1AP01	SOO	50
0.25	0.85	0.7-1	3RV1011-0JA10	3RT1015-1AP01	SOO	50
0.37	1.1	0.9-1.25	3RV1011-0KA10	3RT1015-1AP01	SOO	50
0.55	1.5	1.1-1.6	3RV1011-1AA10	3RT1015-1AP01	SOO	50
0.75	1.9	1.4-2	3RV1011-1BA10	3RT1015-1AP01	SOO	50
0.75	1.9	1.8-2.5	3RV1011-1CA10	3RT1015-1AP01	SO	50
1.1	2.7	2.2-3.2	3RV1011-1DA10	3RT1015-1AP01	SO	50
1.5	3.6	2.8-4	3RV1011-1EA10	3RT1015-1AP01	SO	50
1.5	3.6	3.5-5	3RV1011-1FA10	3RT1015-1AP01	SO	50
2.2	5	4.5-6.3	3RV1011-1GA10	3RT1015-1AP01	SO	50
3	6.5	5.5-8	3RV1011-1HA10	3RT1015-1AP01	SO	50
4	8.5	7-10	3RV1011-1JA10	3RT1016-1AP01	SO	50
5.5	11.5	9-12	3RV1011-1KA10	3RT1017-1AP01	SO	50
7.5	15.5	11-16	3RV1011-4AA10	3RT1025-1AP01	SO	50
7.5	15.5	14-20	3RV1011-4BA10	3RT1025-1AP01	SO	50

Tripping grade : 10 , matching style 2 : /q =100KA

standard Three-phase Motor 4Pole 400V AC		The commuting range of overload tripping device	Circuit breaker Order NO.	AC Contactor Order NO.	Specification	Short-circuit treaking capacity /q ka
rated power	Motor Current	The commuting range of overload tripping device	Circuit breaker Order NO.	AC Contactor Order NO.	Specification	Short-circuit treaking capacity /q ka
0.04	0.16	0.11-0.16	3RV1011-0AA10	3RT1015-1AP01	SOO	130
0.06	0.2	0.14-0.2	3RV1011-0BA10	3RT1015-1AP01	SOO	130
0.06	0.2	0.18-0.25	3RV1011-0CA10	3RT1015-1AP01	SOO	130
0.09	0.3	0.22-0.32	3RV1011-0DA10	3RT1015-1AP01	SOO	130
0.09	0.3	0.28-0.4	3RV1011-0EA10	3RT1015-1AP01	SOO	130
0.12	0.4	0.35-0.5	3RV1011-0FA10	3RT1015-1AP01	SOO	130
0.18	0.6	0.45-0.63	3RV1011-0GA10	3RT1015-1AP01	SOO	130
0.18	0.6	0.55-0.8	3RV1011-0HA10	3RT1015-1AP01	SOO	130
0.25	0.85	0.7-1	3RV1011-0JA10	3RT1015-1AP01	SOO	130
0.37	1.1	0.9-1.25	3RV1011-0KA10	3RT1015-1AP01	SOO	130
0.55	1.5	1.1-1.6	3RV1011-1AA10	3RT1015-1AP01	SOO	130
0.75	1.9	1.4-2	3RV1011-1BA10	3RT1015-1AP01	SOO	130
0.04	0.16	0.11-0.16	3RV1021-0AA10	3RT1024-1AP00	SO	130
0.06	0.2	0.14-0.2	3RV1021-0BA10	3RT1024-1AP00	SO	130
0.06	0.2	0.18-0.25	3RV1021-0CA10	3RT1024-1AP00	SO	130
0.09	0.3	0.22-0.32	3RV1021-0DA10	3RT1024-1AP00	SO	130
0.09	0.3	0.28-0.4	3RV1021-0EA10	3RT1024-1AP00	SO	130
0.12	0.4	0.35-0.5	3RV1021-0FA10	3RT1024-1AP00	SO	130
0.18	0.6	0.45-0.63	3RV1021-0GA10	3RT1024-1AP00	SO	130
0.18	0.6	0.55-0.8	3RV1021-0HA10	3RT1024-1AP00	SO	130
0.25	0.85	0.7-1	3RV1021-0JA10	3RT1024-1AP00	SO	130
0.37	1.1	0.9-1.25	3RV1021-0KA10	3RT1024-1AP00	SO	130
0.55	1.5	1.1-1.6	3RV1021-1AA10	3RT1024-1AP00	SO	130
0.75	1.9	1.4-2	3RV1021-1BA10	3RT1024-1AP00	SO	130
0.75	1.9	1.8-2.5	3RV1021-1CA10	3RT1024-1AP00	SO	130
1.1	2.7	2.2-3.2	3RV1021-1DA10	3RT1024-1AP00	SO	130
1.5	3.6	2.8-4	3RV1021-1EA10	3RT1024-1AP00	SO	130
1.5	3.6	3.5-5	3RV1021-1FA10	3RT1024-1AP00	SO	130
2.2	5	4.5-6.3	3RV1021-1GA10	3RT1024-1AP00	SO	130
3	6.5	5.5-8	3RV1021-1HA10	3RT1024-1AP00	SO	130
4	8.5	7-10	3RV1021-1JA10	3RT1006-1AP00	SO	130
5.5	11.5	9-12	3RV1021-1KA10	3RT1006-1AP00	SO	130
7.5	15.5	11-16	3RV1021-4AA10	3RT1026-1AP00	SO	100
7.5	15.5	14-20	3RV1021-4BA10	3RT1026-1AP00	SO	100

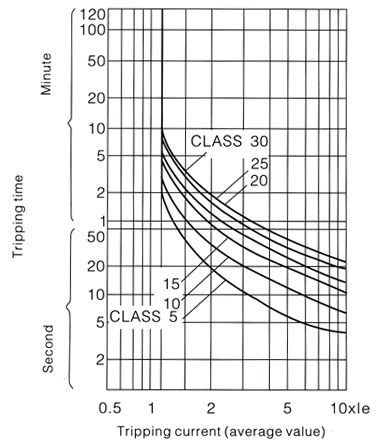

Tripping current (average ＆#118alue)

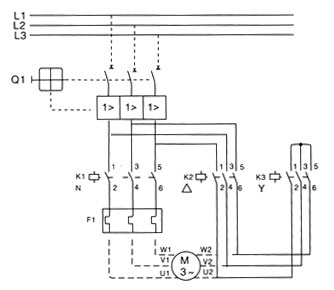

Electrical Circuit Figure-Y-Δ Main Electrical Circuit of Line Connection :
