BYX-RJ11 Surge protective device |
 |
|
|
|
| BYX-RJ11/AD110 |
BYX-RJ11/CC48 |
| Type |
| Type |
Operating voltage |
Transfer rate |
Insertion loss |
Protective circuit |
| BYX-RJ11 |
DC24V, 48V, 110V |
10 Mbps |
< 0.5 db |
P3,4/P2,5 |
| BYX-RJ11 |
P2,3,4,5 |
| BYX-RJ45 |
DC24V, 48V, 110V |
P1,2,3,6 |
| BYX-RJ45 |
P3,4,5,6 |
| BYX-JZ |
DC 5V, 24V, 48V, 110V |
Signal Return Circuit |
| BYX-RJ45 |
DC24V, 48V, 110V |
100 Mbps |
< 1 db |
P1,2,3,6 |
| BYX-RJ45 |
P3,4,5,6 | |
| BYX-RJ11 Series Technical Parameters |
|
BYX-RJ11/ |
| AC110 |
BC110 |
CC110 |
AC48 |
BC48 |
CC48 |
AC24 |
BC24 |
CC24 |
|
Operating voltage Un |
DC110V |
DC48V |
DC24V |
|
Maximum continuous Operating voltage Uc |
DC150V |
DC60V |
DC30V |
|
Voltage limiting Up(10/700 µ s) |
= 500V |
= 200V |
= 120V |
|
Nominal discharge current In(8/20 µ s) kA |
3 kA |
|
Impulse protective voltage Ur(1kV/ µ s) |
= 600V |
|
Frequency range |
2MHz |
|
Insertion loss |
<0.5db |
|
Interface form |
RJ11 |
|
Protective feet |
3,4 |
2,5 |
2,3,4,5 |
3,4 |
2,5 |
2,3,4,5 |
3,4 |
2,5 |
2,3,4,5 |
|
Protective way |
Full protective mode |
|
Response time |
<1 ns |
|
Outer covering material |
Shield aluminum | |
| Introduction |
| BYX-RJ11 series surge protective device is suiting to such as modem, DDN special line, fax-machine and telephone-machine which protects the electric network shocked by the thunder or surge over voltage. |

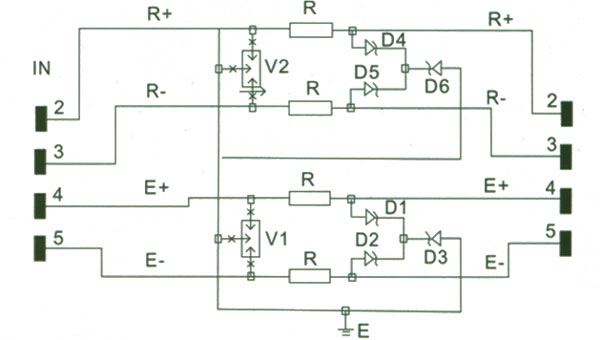

| Electric Principle Picture |
 |
| Installation Location and Application |
Installed at the interface of the data line between LPZ1and LPZ3.
Suiting to the terminal device such as modem (ISDN, ADSL), DDN special line, fax-machine and telephone machine.
Being installed the RJ11 socket, it can make up signal defence thunder case with many poles or return circuits according to the request of the customers. |
| Product Features |
Small section of return circuit but excellent protective performance.
Little rest voltage but fast response time.
With double protective of the over voltage. |
|
