Brushless DC Fan TFS12025 Series
 |
| General Data |
Insulation resistance:more than 10m Ω between housing and plus end wire redcolor)at 500V DC。
Dielectric strength:no damage can be found 600v AC.2 secretary,between housing and plus end of lead wire.
Material:
Frame:UL94V-0 70% P.B.T.+30% F.R.P
1mpeller:UL94V-0 70% P.B.T.+30% F.R.P
Bearing:preclsion ball bearing system precision .Qilimpregnated sleeve bearing system
Operating temperature:-10 to+℃70
Storage temperature:-40 to+℃70
Opreating voltage:rated voltage±15%. |

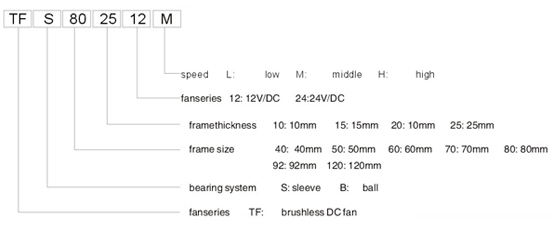

| Name System |
 |
| Technica Iparameter |
| Dimension (mm) |
Model |
Voltage (VAC) |
Current (AMP) |
Power (Watts) |
Speed (RPM) |
Air Flo (CFM) |
Pressure (inch/H2O) |
Moise (dBA) |
Weight (Gram) |
| 120x120x25 |
TFS12025L |
12V |
0.24 |
2.64 |
1800 |
50.60 |
2.41 |
34.4 |
138 |
| TFS12025M |
12V |
0.33 |
3.96 |
2050 |
61.38 |
2.97 |
38.0 |
138 |
| TFS12025H |
12V |
0.37 |
4.44 |
2200 |
72.64 |
3.45 |
39.2 |
138 |
| TFS12025L |
24V |
0.14 |
3.36 |
1800 |
50.60 |
2.41 |
34.4 |
138 |
| TFS12025M |
24V |
0.17 |
4.08 |
2050 |
61.38 |
2.97 |
38.0 |
138 |
| TFS12025H |
24V |
0.19 |
4.56 |
2200 |
72.64 |
3.45 |
39.2 |
138 | |

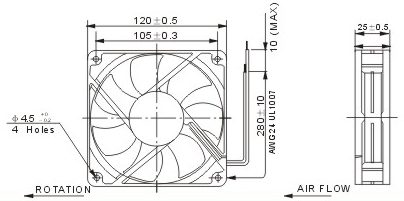

| Outline Drawing |
 | | |
|
