Brushless DC Fan TFS9225 Series
 |
| General Data |
Insulation resistance:more than 10m Ω between housing and plus end wire redcolor)at 500V DC。
Dielectric strength:no damage can be found 600v AC.2 secretary,between housing and plus end of lead wire.
Material:
Frame:UL94V-0 70% P.B.T.+30% F.R.P
1mpeller:UL94V-0 70% P.B.T.+30% F.R.P
Bearing:preclsion ball bearing system precision .Qilimpregnated sleeve bearing system
Operating temperature:-10 to+℃70
Storage temperature:-40 to+℃70
Opreating voltage:rated voltage±15%. |

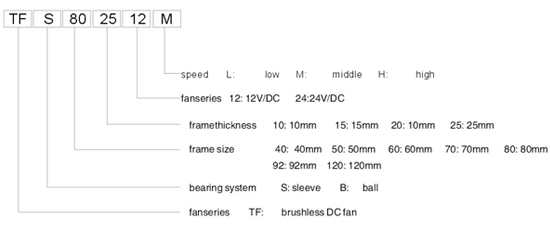

| Name System |
 |
| Technica Iparameter |
| Dimension (mm) |
Model |
Voltage (VAC) |
Current (AMP) |
Power (Watts) |
Speed (RPM) |
Air Flo (CFM) |
Pressure (inch/H2O) |
Moise (dBA) |
Weight (Gram) |
| 92x92x25 |
TFS9225L |
12V |
0.16 |
1.92 |
2000 |
25.48 |
1.23 |
26.72 |
82 |
| TFS9225M |
12V |
0.20 |
2.40 |
2500 |
30.92 |
1.80 |
31.92 |
82 |
| TFS9225H |
12V |
0.23 |
2.76 |
2800 |
34.06 |
2.26 |
35.81 |
82 |
| TFB9225L |
12V |
0.16 |
1.92 |
2000 |
25.48 |
1.23 |
26.72 |
82 |
| TFB9225M |
12V |
0.20 |
2.40 |
2500 |
30.92 |
1.80 |
31.92 |
82 |
| TFB9225H |
12V |
0.25 |
2.76 |
2800 |
34.06 |
2.26 |
35.81 |
82 |
| TFS9225L |
24V |
0.12 |
2.88 |
2000 |
25.48 |
1.23 |
26.72 |
82 |
| TFS9225M |
24V |
0.15 |
3.60 |
2450 |
30.02 |
1.74 |
30.76 |
82 |
| TFS9225H |
24V |
0.20 |
4.80 |
2800 |
34.06 |
2.26 |
35.81 |
82 | |

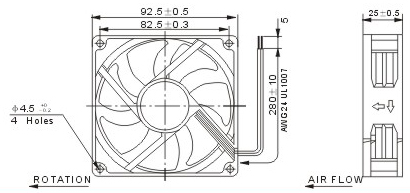

| Outline Drawing |
 | | |
|
