Brushless DC Fan TFS8025 Series
 |
| General Data |
Insulation resistance:more than 10m Ω between housing and plus end wire redcolor)at 500V DC。
Dielectric strength:no damage can be found 600v AC.2 secretary,between housing and plus end of lead wire.
Material:
Frame:UL94V-0 70% P.B.T.+30% F.R.P
1mpeller:UL94V-0 70% P.B.T.+30% F.R.P
Bearing:preclsion ball bearing system precision .Qilimpregnated sleeve bearing system
Operating temperature:-10 to+℃70
Storage temperature:-40 to+℃70
Opreating voltage:rated voltage±15%. |

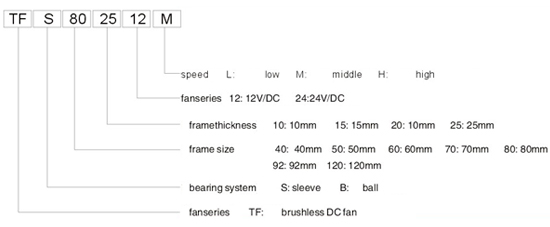

| Name System |
 |
| Technica Iparameter |
| Dimension (mm) |
Model |
Voltage (VAC) |
Current (AMP) |
Power (Watts) |
Speed (RPM) |
Air Flo (CFM) |
Pressure (inch/H2O) |
Moise (dBA) |
Weight (Gram) |
| 80x80x25 |
TFS8025L |
12V |
0.10 |
1.20 |
2000 |
25.46 |
1.63 |
24.25 |
75 |
| TFS8025M |
12V |
0.12 |
1.44 |
2400 |
32.23 |
2.56 |
27.85 |
75 |
| TFS8025H |
12V |
0.20 |
2.40 |
3000 |
38.56 |
3.48 |
32.60 |
75 |
| TFB8025L |
12V |
0.08 |
0.96 |
2000 |
25.46 |
1.63 |
24.25 |
75 |
| TB8025M |
12V |
0.12 |
1.44 |
2400 |
32.23 |
2.56 |
27.85 |
75 |
| TFB8025H |
12V |
0.20 |
2.40 |
3000 |
38.56 |
3.48 |
32.60 |
75 |
| TFS8025L |
24V |
0.10 |
2.40 |
2200 |
15.60 |
1.26 |
26.32 |
75 |
| TFS8025M |
24V |
0.12 |
2.88 |
2600 |
19.32 |
1.96 |
30.72 |
75 |
| TFS8025H |
24V |
0.16 |
3.84 |
3000 |
23.67 |
3.26 |
33.60 |
75 | |

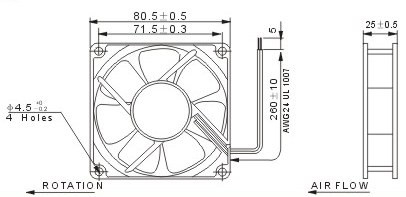

| Outline Drawing |
| |  |
|
