Brushless DC Fan TFS7015 Series
 |
| General Data |
Insulation resistance:more than 10m Ω between housing and plus end wire redcolor)at 500V DC。
Dielectric strength:no damage can be found 600v AC.2 secretary,between housing and plus end of lead wire.
Material:
Frame:UL94V-0 70% P.B.T.+30% F.R.P
1mpeller:UL94V-0 70% P.B.T.+30% F.R.P
Bearing:preclsion ball bearing system precision .Qilimpregnated sleeve bearing system
Operating temperature:-10 to+℃70
Storage temperature:-40 to+℃70
Opreating voltage:rated voltage±15%. |

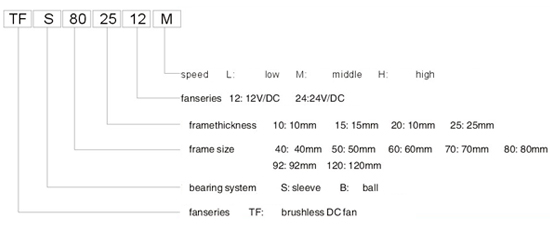

| Name System |
 |
| Technica Iparameter |
| Dimension (mm) |
Model |
Voltage (VAC) |
Current (AMP) |
Power (Watts) |
Speed (RPM) |
Air Flo (CFM) |
Pressure (inch/H2O) |
Moise (dBA) |
Weight (Gram) |
| 70x70x15 |
TFS7015L |
12V |
0.18 |
2.16 |
4000 |
27.6 |
3.76 |
35.20 |
48 |
| TFS7015M |
12V |
0.21 |
2.52 |
4500 |
29.5 |
4.16 |
37.03 |
48 |
| TFS7015H |
12V |
0.25 |
3.00 |
5000 |
32.1 |
4.69 |
39.24 |
48 | |

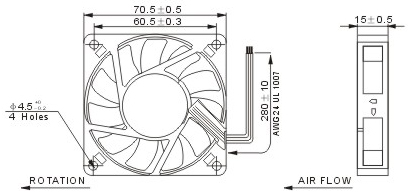

| Outline Drawing |
 | |
|
