Brushless DC Fan TFS6010 Series


General Data

Insulation resistance:more than 10m Ω　between housing and plus end wire redcolor)at 500V DC。
Dielectric strength:no damage can be found 600v AC.2 secretary,between housing and plus end of lead wire.
Material:
　Frame:UL94V-0 70% P.B.T.+30% F.R.P
　1mpeller:UL94V-0 70% P.B.T.+30% F.R.P
　Bearing:preclsion ball bearing system precision .Qilimpregnated sleeve bearing system
Operating temperature:-10 to+℃70
Storage temperature:-40 to+℃70
Opreating voltage:rated voltage±15%.

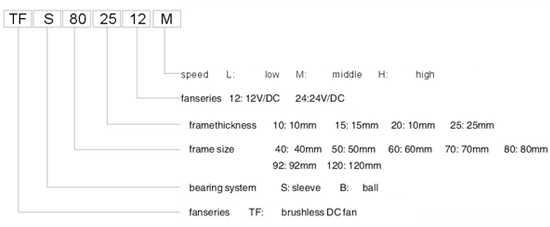

Name System
Technica Iparameter
 Dimension (mm)  Model  Voltage (VAC)  Current (AMP)  Power (Watts)  Speed (RPM)  Air Flo (CFM)  Pressure (inch/H2O)  Moise (dBA)  Weight (Gram)
60x60x10 TFS6010L 12V 0.10 1.20 3500 9.76 1.32 27.20 23
TFS6010M 12V 0.12 1.44 4000 11.92 1.86 29.13 23
TFS6010H 12V 0.13 1.56 4500 13.30 2.18 31.23 23
TFS6010L 24V 0.10 2.40 3500 9.76 1.32 27.20 23
TFS6010M 24V 0.12 2.85 4000 11.92 1.86 29.13 23
TFS6010H 24V 0.14 3.36 4500 13.30 2.18 31.23 23

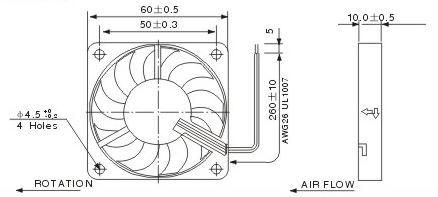

Outline Drawing
