                                                                 Brushless DC Fan TFS5015 Series

General Data

Insulation resistance:more than 10m Ω　between housing and plus end wire redcolor)at 500V DC。
Dielectric strength:no damage can be found 600v AC.2 secretary,between housing and plus end of lead wire.
Material:
　Frame:UL94V-0 70% P.B.T.+30% F.R.P
　1mpeller:UL94V-0 70% P.B.T.+30% F.R.P
　Bearing:preclsion ball bearing system precision .Qilimpregnated sleeve bearing system
Operating temperature:-10 to+℃70
Storage temperature:-40 to+℃70
Opreating voltage:rated voltage±15%.

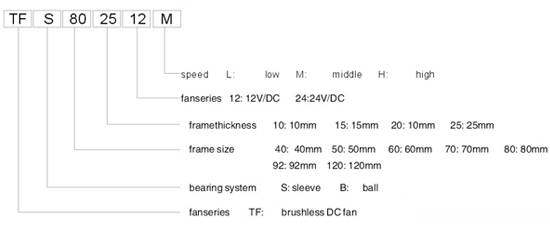

Name System
Technica Iparameter
 Dimension (mm)  Model  Voltage (VAC)  Current (AMP)  Power (Watts)  Speed (RPM)  Air Flo (CFM)  Pressure (inch/)  Moise (dBA)  Weight (Gram)
50x50x15 TFS5015L 12V 0.09 1.08 4000 16.00 2.31 26.31 28
TFS5015M 12V 0.10 1.32 4500 17.13 2.87 27.82 28
TFS5015H 12V 0.14 1.68 5000 18.50 3.69 30.80 28
TFS5015L 24V 0.09 2.16 4000 16.00 2.31 26.31 28
TFS5015M 24V 0.11 2.64 4500 17.13 2.87 27.82 28
TFS5015H 24V 0.14 3.36 5000 18.50 3.39 30.80 28

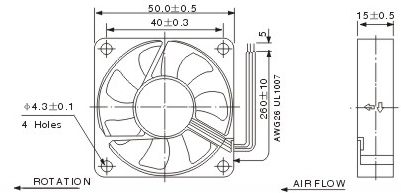

Outline Drawing
