Axial AC Fan 200FZY Series


General Data

Electric moltor:Shaded pole type AC electric motor design
Frame:High quality aluminum alloy outside frame
Anti-corrosive and moisture proof structure
Impeller:UL-0 70% PBT+30FRP.
Bearing:self lubricating bearing and ball bearing
Insulation:class B
Insulation impedance:the case adds 500V DC to the coils,insulation impedance 100MΩ higher
Dielectric strength:0.5mA 1500V/ACmin.
Safety protection:Impedance protection
Operating temperature:-10-+70℃
Storage temperature:-40-+70℃

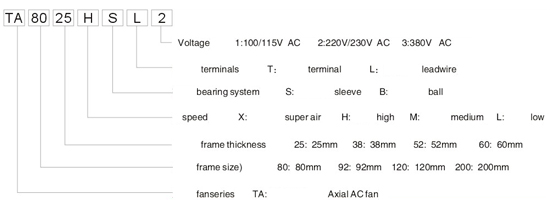

Name System
Technica Iparameter

Dimension
(mm)

Model

Voltage
(VAC)

Frequency
(Hz)

Current
(AMP)

Power
(Watts)

Speed
(RPM)

Air Flo
(CFM)

Pressure
(inch/H2O)

Moise(dBA)

Weight
(Gram)

200x210x71 200FZY2-D 220 50 0.25 50 2300 4.8 60

CBB22LUF/400V

 1650
200FZY2-D 220 50 0.30 65 2650 13.6 68

CBB22LUF/400V

 1650
200FZY4-D 380 50 0.16 30 2300 4.8 60 3Phase 1650
200FZY4-D 380 50 0.18 65 2650 13.6 68 3Phase 1650

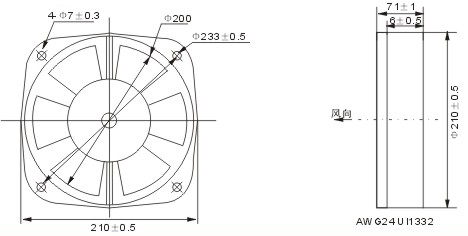

Outline Drawing
