Axial AC Fan 150FZY Series


General Data

Electric moltor:Shaded pole type AC electric motor design
Frame:High quality aluminum alloy outside frame
Anti-corrosive and moisture proof structure
Impeller:UL-0 70% PBT+30FRP.
Bearing:self lubricating bearing and ball bearing
Insulation:class B
Insulation impedance:the case adds 500V DC to the coils,insulation impedance 100MΩ higher
Dielectric strength:0.5mA 1500V/ACmin.
Safety protection:Impedance protection
Operating temperature:-10-+70℃
Storage temperature:-40-+70℃

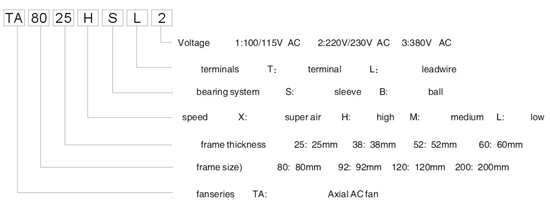

Name System
Technica Iparameter

Dimension
(mm)

Model

Voltage
(VAC)

Frequency
(Hz)

Current
(AMP)

Power
(Watts)

Speed
(RPM)

Air Flo
(CFM)

Pressure
(inch/H2O)

Moise
(dBA)

Weight
(Gram)

150x160x60 150FZY2-D 220 50 0.16 30 2600 5.1 62 1.0/400V 900
150FZY2-D 220 50 0.19 40 2800 6.2 65 1.0/400V 900
150FZY4-D 380 50 0.10 30 2600 5.1 62 3Phase 900
150FZY4-D 380 50 0.12 40 2800 6.2 65 3Phase 900

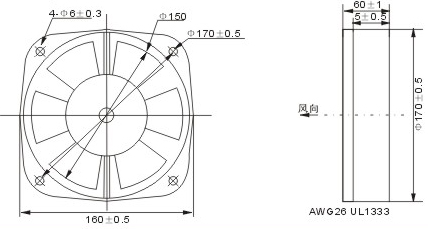

Outline Drawing
