Axial AC Fan TA18060 Series


General Data

Electric moltor:Shaded pole type AC electric motor design
Frame:High quality aluminum alloy outside frame
Anti-corrosive and moisture proof structure
Impeller:UL-0 70% PBT+30FRP.
Bearing:self lubricating bearing and ball bearing
Insulation:class B
Insulation impedance:the case adds 500V DC to the coils,insulation impedance 100MΩ higher
Dielectric strength:0.5mA 1500V/ACmin.
Safety protection:Impedance protection
Operating temperature:-10-+70℃
Storage temperature:-40-+70℃

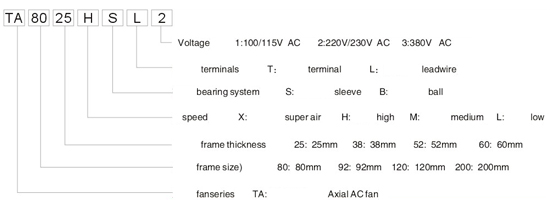

Name System
Technica Iparameter

Dimension
(mm)

Model

Voltage
(VAC)

Frequency
(Hz)

Current
(AMP)

Power
(Watts)

Speed
(RPM)

Air Flo
(CFM)

Pressure
(inch/H2O)

Moise
(dBA)

Weight
(Gram)

180x180x61 TA18060MBL-1 115 50 0.60 50 2500 255 0.60 58 1700
TA18060BSL-2 230 50 0.35 55 2500 255 0.60 58 1700
TA18060MBSL-3 380 50 0.25 60 2500 255 0.60 58 1700

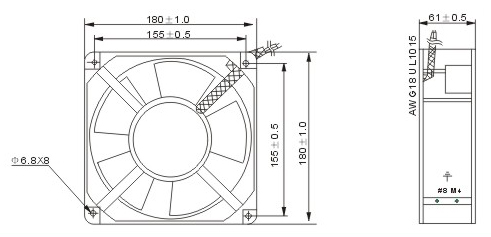

Outline Drawing
