Axial AC Fan TA15052 Series


General Data

Electric moltor:Shaded pole type AC electric motor design
Frame:High quality aluminum alloy outside frame
Anti-corrosive and moisture proof structure
Impeller:UL-0 70% PBT+30FRP.
Bearing:self lubricating bearing and ball bearing
Insulation:class B
Insulation impedance:the case adds 500V DC to the coils,insulation impedance 100M¦¸ higher
Dielectric strength:0.5mA 1500V/ACmin.
Safety protection:Impedance protection
Operating temperature:-10-+70¡æ
Storage temperature:-40-+70¡æ

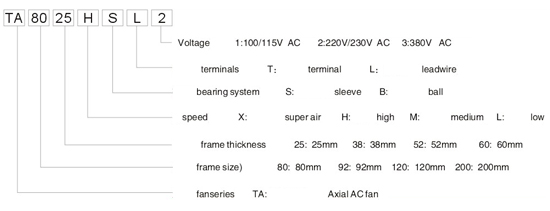

Name System
Technica Iparameter

Dimension
(mm)

Model

Voltage
(VAC)

Frequency
(Hz)

Current
(AMP)

Power
(Watts)

Speed
(RPM)

Air Flo
(CFM)

Pressure
(inch/H2O)

Moise
(dBA)

Weight
(Gram)

152¡Á172¡Á52 TA15052MSL-1 115 50 0.33 25 2500 180 0.38 49.6 900
TA15052HSL-1 115 60 0.38 29.8 2700 195 0.52 53 900
TA15052MSL-2 230 50 0.18 25 2500 180 0.38 49.6 900
TA15052HSL-2 230 60 0.20 31 2700 195 0.52 53 900
TA15052MSL-2 380 50 0.14 25 2500 180 0.38 49.6 900

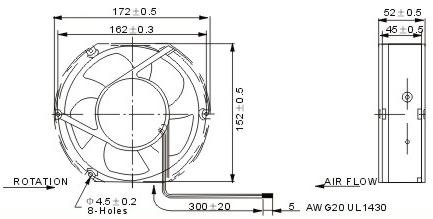

Outline Drawing
