Axial AC Fan TA12025 Series


General Data

Electric moltor:Shaded pole type AC electric motor design
Frame:High quality aluminum alloy outside frame
Anti-corrosive and moisture proof structure
Impeller:UL-0 70% PBT+30FRP.
Bearing:self lubricating bearing and ball bearing
Insulation:class B
Insulation impedance:the case adds 500V DC to the coils,insulation impedance 100MΩ higher
Dielectric strength:0.5mA 1500V/ACmin.
Safety protection:Impedance protection
Operating temperature:-10-+70℃
Storage temperature:-40-+70℃

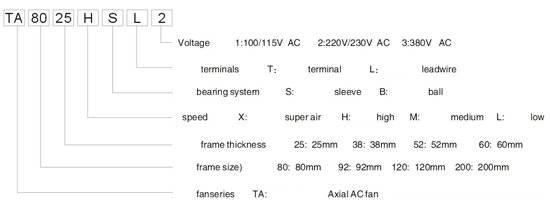

Name System
Technica Iparameter

Dimension
(mm)

Model

Voltage
(VAC)

Frequency
(Hz)

Current
(AMP)

Power
(Watts)

Speed
(RPM)

Air Flo
(CFM)

Pressure
(inch/H2O)

Moise
(dBA)

Weight
(Gram)

120x120x25 TA12025HSL-1 115 50 0.16 17 1800 49 0.14 36 36
TA12025HSL-1 115 50 0.23 24 2100 61 0.13 38 320
TA12025HSL-1 230 60 0.19 19.70 2400 70 0.15 44 320
TA12025HSL-2 230 50 0.10 18 1800 49 0.14 38 320
TA12025HSL-2 230 50 0.11 21 2100 61 0.13 36 320
TA12025HSL-2 230 60 0.10 18 2400 70 0.15 44 320

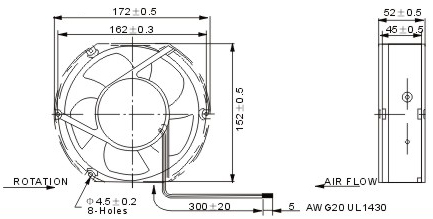

Outline Drawing
