Axial AC Fan TA9225 Series


General Data

Electric moltor:Shaded pole type AC electric motor design
Frame:High quality aluminum alloy outside frame
Anti-corrosive and moisture proof structure
Impeller:UL-0 70% PBT+30FRP.
Bearing:self lubricating bearing and ball bearing
Insulation:class B
Insulation impedance:the case adds 500V DC to the coils,insulation impedance 100M¦¸ higher
Dielectric strength:0.5mA 1500V/ACmin.
Safety protection:Impedance protection
Operating temperature:-10-+70¡æ
Storage temperature:-40-+70¡æ

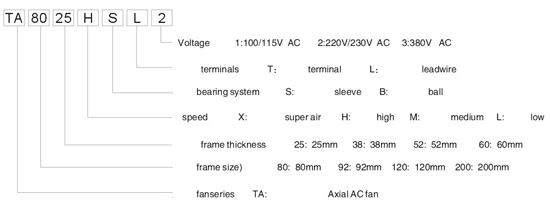

Name System
Technica Iparameter

Dimension
(mm)

Model

Voltage
(VAC)

Frequency
(Hz)

Current
(AMP)

Power
(Watts)

Speed
(RPM)

Air Flo
(CFM)

Pressure
(inch/H2O)

Moise
(dBA)

Weight
(Gram)

92¡Á92¡Á25 TA9225MSL-1 115 50 0.14 15 2100 25 0.13 23 270
TA9225MSL-1 115 60 0.13 12 2300 27 0.14 24 270
TA9225MSL-2 230 50 0.08 16 2100 25 0.13 23 270
TA9225MSL-2 230 60 0.07 11 2300 27 0.14 24 270
Outline Drawing
