Axial AC Fan TA8038 Series


General Data

Electric moltor:Shaded pole type AC electric motor design
Frame:High quality aluminum alloy outside frame
Anti-corrosive and moisture proof structure
Impeller:UL-0 70% PBT+30FRP.
Bearing:self lubricating bearing and ball bearing
Insulation:class B
Insulation impedance:the case adds 500V DC to the coils,insulation impedance 100MΩ higher
Dielectric strength:0.5mA 1500V/ACmin.
Safety protection:Impedance protection
Operating temperature:-10-+70℃
Storage temperature:-40-+70℃

Name System
Technica Iparameter

Dimension
(mm)

Model

Voltage
(VAC)

Frequency
(Hz)

Current
(AMP)

Power
(Watts)

Speed
(RPM)

Air Flo
(CFM)

Pressure
(inch/H2O)

Moise
(dBA)

Weight
(Gram)

80x80x38 TA8038MSL-1 115 50 0.15 10 2300 24 0.12 25.5 320
TA8038HSL-1 115 60 0.13 6.8 2800 29.8 0.17 31.2 320
TA8038MSL-2 230 50 0.07 10 2300 24 0.12 25.5 320
TA8038HSL-2 230 60 0.06 6.8 2800 29.8 0.17 31.2 320
TA8038MSL 115/230 50 0.32/0.16 28 2300 24 0.12 25.5 320

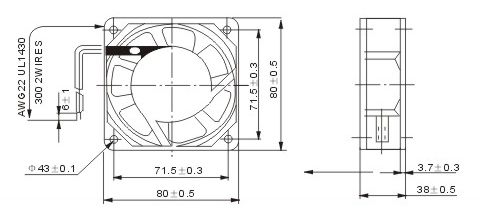

Outline Drawing
