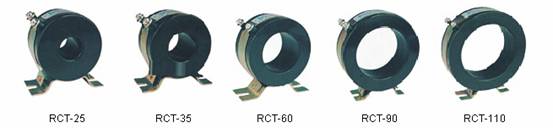

RCT Current Transformers |
|
|
|
RCT Series: |
Primary current:
Secondary current:
Standard approval:
Maximum voltage:
Frequency:
Rated load:
Class:
Short-time thermal current:
Rated security coefficient: |
30A-3000A
5A, 1A
IEC44-1
0.66KV
50-60Hz
15VA
1.0
Ith=60 X Ih
FS<5 |
| Specification: |
|
Model |
Primary / secondary (A) |
|
RCT-25 |
15/5, 200/5, 30/5, 40/5, 50/5, 60/5, 75/5, 100/5A |
|
RCT-35 |
30/5, 50/5, 60/5, 80/5, 100/5, 120/5, 150/5, 200/5A, 250/5, 300/5 |
|
RCT-60 |
300/5, 400/5, 500/5, 600/5, 800/5, 1000/5, 1200/5 |
|
RCT-90 |
800/5, 1000/5, 1200/5, 1500/5, 1600/5 |
|
RCT-110 |
1000/5, 1200/5, 1500/5, 1600/5, 2000/5, 2500/5, 3000/5 | |
| Dimension of case (mm): |
|
Model |
RCT-25 |
RCT-35 |
RCT-60 |
RCT-90 |
RCT-110 |
|
A |
93 |
93 |
93 |
93 |
102 |
|
B |
78 |
78 |
78 |
78 |
86 |
|
C |
25 |
32 |
60 |
90 |
111 |
|
D |
78 |
78 |
104 |
136 |
157 |
|
E |
2 |
2 |
2 |
2 |
2 |
|
F |
55 |
55 |
41 |
41 |
52 |
|
G |
9 |
9 |
9 |
9 |
9 | |

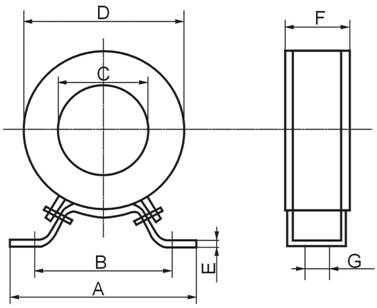

| outline drawing: |
 | |
|
