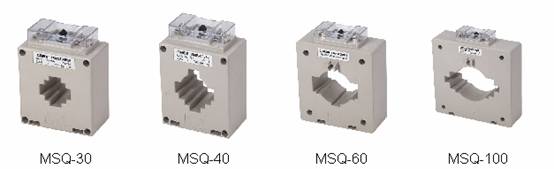

The MSQ series of CT can be applied to test, control, display and record the running of the electrical equipment, and to protect the equipment against the damage, in the AC circuit with the rated voltage ＆#118alue below 720V and the frequency of 50-60Hz. The product can be also applied to form a complete set of mine transformer
The products comply with VDE 0414, BS7626 and IEC 44-1 standard.
Technical characteristics of current transformers:
WITH BUSBAR
|
Type |
Rated current (A) |
Rated power (VA) |
Weight (kg) |
|
Class:0.5 |
Class:1 |
|
MSQ-30B |
5/5
10/5
15/5
20/5
25/5
30/5
40/5
50/5
60/5
75/5
80/5
100/5
120/5
125/5
150/5
200/5
250/5 |
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10 |
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10
5-10 |
0,60
0,60
0,60
0,60
0,60
0,60
0,60
0,60
0,60
0,60
0,60
0,60
0,60
0,60
0,60
0,60
0,60 |
|
Type |
Rated current(A) |
Rated power (VA) |
Weight (kg) |
|
Class:0.5 |
Class:1 |
|
MSQ-30T |
100/5
125/5
150/5
160/5
200/5
250/5 |
2.5-5
3-5
5-10
5-10
5-10
5-10 |
5
5-10
5-10
5-10
5-10
5-10 |
0,62
0,62
0,62
0,62
0,62
0,62 |
|
Technical characteristics of current transformers:
WINDOWS TYPE |
| WITH BUSBAR |
Bar: 30 X 10mm.
conductor: Ø20mm. |
|
Type |
Rated current (A) |
Rated power (VA) |
Weight (kg) |
|
Class:0.5 |
Class:1 |
|
MSQ-30B |
30/5
40/5
50/5
60/5
75/5
80/5
100/5
150/5
200/5
250/5
300/5 |
-
-
-
-
1
1.5
2.5
5-10
5-10
5-10
5-10 |
1
1
1
1
1.5
2.5
5
5-10
5-10
5-10
5-10 |
0,4
0,4
0,4
0,4
0,4
0,4
0,4
0,4
0,4
0,4
0,4 | |
| WINDOWS TYPE |
Bar: 40 X 10mm.
conductor: Ø30mm. |
|
Type |
Rated current (A) |
Rated power (VA) |
Weight (kg) |
|
Class:0.5 |
Class:1 |
|
MSQ-40 |
100/5
150/5
200/5
250/5
300/5
400/5
500/5 |
2.5
3
5
5-10
5-10
5-10
5-10 |
2.5
5
5-10
5-10
5-10
5-10
5-10 |
0,38
0,38
0,38
0,38
0,38
0,38
0,38 | |
| WINDOWS TYPE |
Bar: 60 X 20mm.
conductor: Ø40mm. |
Bar: 80 X 30mm.or 100 X 10mm.
conductor:Ø60mm. |
| WINDOWS TYPE |
Bar: 80 X 30mm.or 100 X 10mm.
conductor:Ø60mm. |
|
Type |
Rated current (A) |
Rated power (VA) |
Weight (kg) |
|
Class:0.5 |
Class:1 |
|
MSQ-100 |
1500/5
1600/5
2000/5
2250/5
2500/5
3000/5 |
15
15
15
15
15
15 |
15
15
15
15
15
15 |
0,80
0,80
0,94
1,10
1,16 | |
| Technical characteristics of current transformers: |
| WINDOWS TYPE |
| WINDOWS TYPE |
Bar: 82 X 30mm.
conductor: Ø80mm.. |
|
Type |
Rated current (A) |
Rated power (VA) |
Weight (kg) |
|
Class:0.5 |
Class:1 |
|
MSQ-85 |
750/5
800/5
1200/5
1500/5 |
15
15
15
15
15 |
15
15
15
15
15 |
0,75
0,82
0,89
0,99
1,02 | |
| WINDOWS TYPE |
Bar: 125 X 57mm. or 125 X 10mm.
conductor: Ø60mm. |
|
Type |
Rated current (A) |
Rated power (VA) |
Weight (kg) |
|
Class:0.5 |
Class:1 |
|
MSQ-125 |
1500/5
2000/5
2500/5
3000/5
4000/5
5000/5
|
15
15
15
15
15
15 |
30
30
30
30
30
30 |
1,0
1,15
1,45
1,60
1,90
2,20 | |
| WINDOWS TYPE |
Bar: 125 X 38mm.. |
|
Type |
Rated current (A) |
Rated power (VA) |
Weight (kg) |
|
Class:0.5 |
Class:1 |
|
MSQ-100 |
800/5
100/5
1200/5
1250/5
1500/5
1600/5 2000/5
2250/5
2500/5
3000/5
4000/5
5000/5 |
7.5
10
10
12.5
15
15 15
15
15
15
15
15 |
15
20
25
30
30
30 30
30
30
30
30
30 |
1,0
1,0
1,0
1,0
1,0 1,05
1,15
1,20
1,45
1,60 1,90
2,20 | |
MOUNTING
DIMENSION:

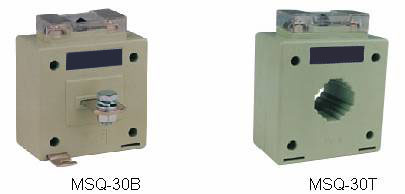

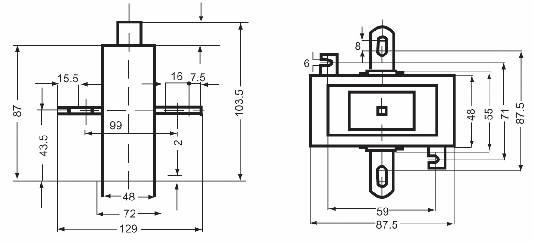

MSQ-30B
With bar:
Installation screws (M8 X 20) which
Are used on the busbar are delivered with
The current transformers.

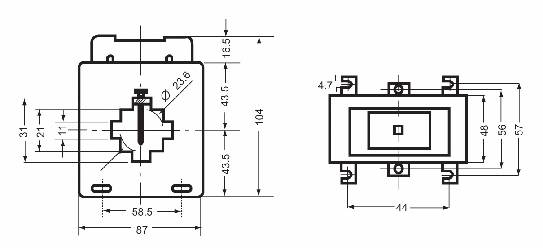

MSQ-30T
Busbar dimensions (max): 30 X 20mm
Round conductor cross
Section (max): Ø20mm
(*) Busbar connection apparatus
Is delivered in the box.

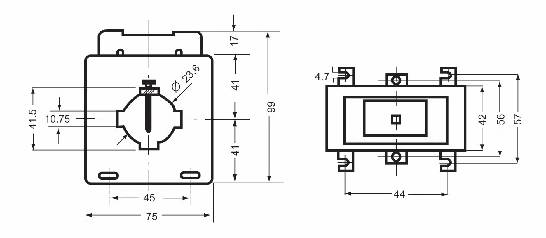

MSQ-30
Busbar dimensions (max): 30 X 20mm
Round conductor cross
Section (max): Ø20mm
(*) Busbar connection apparatus
Is delivered in the box.

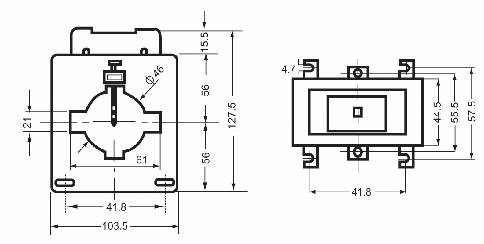

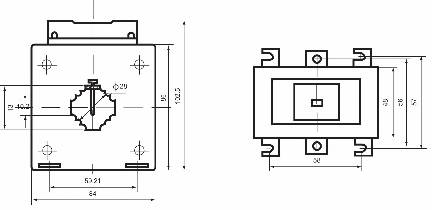

MSQ-40
Busbar dimensions (max): 40 X 10mm
Round conductor cross
Section (max): Ø30mm
(*) Busbar connection apparatus
Is delivered in the box.
DIMENSIONS:
MSQ-60
Busbar dimensions (max): 60 X 20mm
Round conductor cross
Section (max): Ø40mm

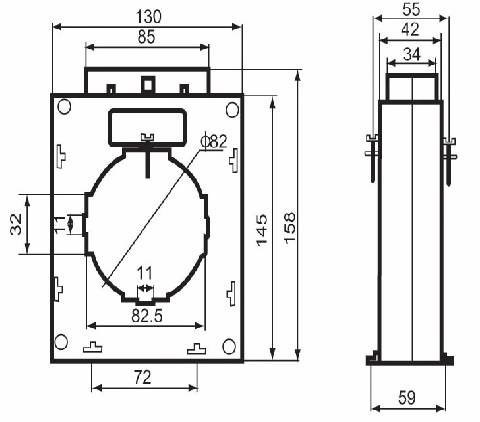

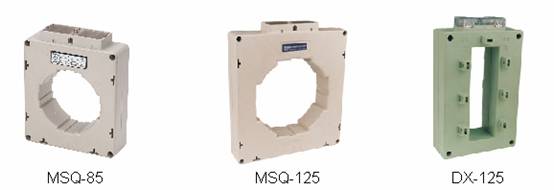

MSQ-85
Busbar dimensions (max): 82 X 30mm
Round conductor cross
Section (max): Ø80mm

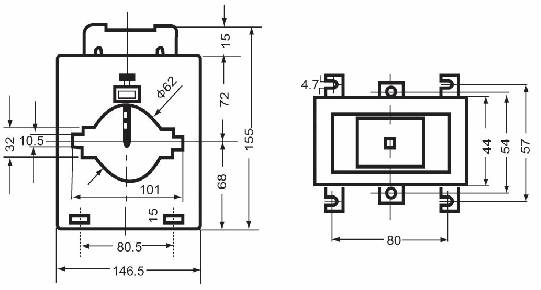

MSQ-100
Busbar dimensions (max): 100 X 10mm
Round conductor cross
Section (max): Ø60mm

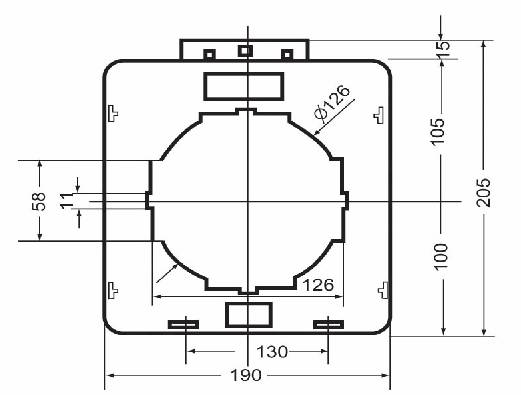

MSQ-125
Busbar dimensions (max): 126 X 60mm
Round conductor cross
Section (max): Ø126mm

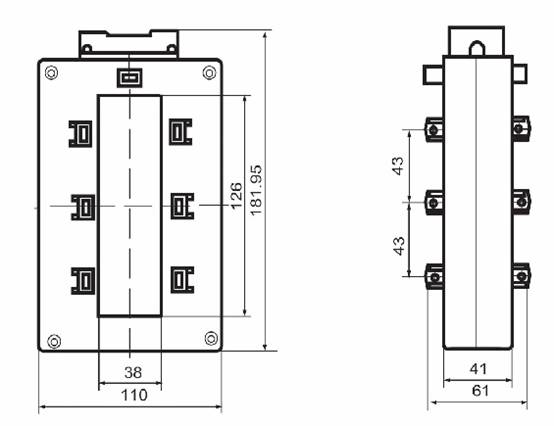

 DX-125
Busbar dimensions (max): 125 X 38mm
Round conductor cross
Section (max): Ø126mm
 |
