C65NLE 2P
C65NLE 4P

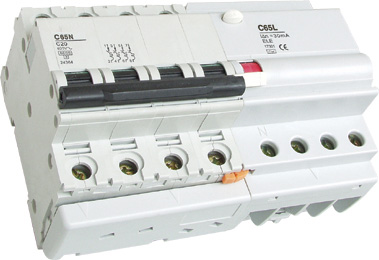

| C65NLE Residual Current Circuit Breaker with Over Current Protection |
| Application |
| C65NLE RCBO is used for the protection against electrical leakage in the circuit of 50Hz or 60Hz, rated voltage single-phase 230V, 3 phase 400V, rated current up to 60A. When somebody gets an electric shock or the residual current of the circuit exceeds the fixed ＆#118alue, the ELCB can cut off the power within the time of 0.1s automatically to protect the personal safety and preventing the equipment from the fault resulted by the residual current. With this function, the ELCB can protect the circuit against overload and short circuit or can be used for the unfrequent switchover of the circuit under normal conditions. It conforms to IEC61009 standard. |
| Specifications |
|
Number of Poles |
1P+N, 2P, 3P, 3P+N, 4P |
|
Rated voltage |
240/415V |
|
Rated current |
6A 10A 16A 20A 25A 32A 40A 50A 63A |
|
Rated operating current (mA) |
30mA 100mA 300mA |
Rated non-operating(  ) |
≤0.5  |
|
Tripping Curve |
C, D | |
| |
|
