HDT1 3P HDT1-4P
| HDT1 Isolating Switch Fuse |
| Application |
| The products are suitable for making and breaking power turn-circuit of voltage 415V, frequency 50/60Hz, rated current less than 630A, acting as power switch, isolating switch and emergency switch. Because of special system of arc-contact and main-contact, HDT1 operates with high efficiency, safety and reliability, conforming to IEC60947-3.Rotational operation and direct mechanical connection between handle and moving contact, on-off handle makes contact break and indicating place of contact. Panel and independent type installation are fitted with HDT1. |

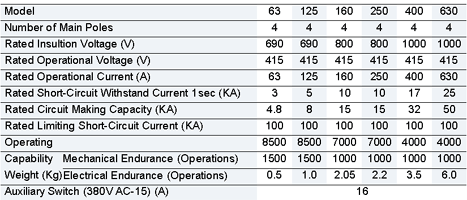

| Specifications |
 | |
|
