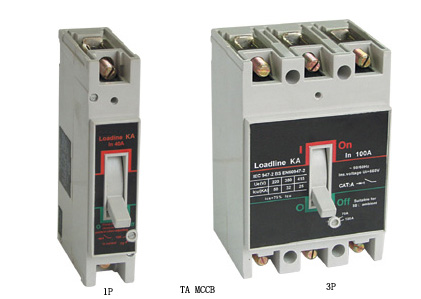

| TA Moulded Case Circuit Breaker |
| Application |
|
TA moulded case circuit breaker is one of the most advanced type breakers in the world, which adopts international advanced design and manufacture technology. They are suitable for short circuit and overload protection for circuit of AC 690V 50/60Hz, rated current from 12.5A to 630A.Its rated insulation voltage is 690V. It can make and break the non-frequently circuit in the normal conditions. It takes protect effect when mouse cage motors non-frequent start, breaking off working and protecting overload, short circuit and lacking voltage. It complies with IEC60947-2. |
| Specifications |
|
|
TA-125 |
Number of Poles |
Rated Insulation voltage (V) |
Rated Operating voltage (V) |
Arcing-Over Distance(mm) |
|
Number of Poles |
1P, 3P |
3P |
3P |
3P |
3P |
|
Rated Current (A) |
25, 32, 40, 50, 63, 80, 100, 125 |
160
200
225 |
250
315
400 |
500
630 |
800 |
|
Lowest Setting Current (A) |
17.5, 22.5, 28, 35, 44, 56, 70, 88 |
112
140
157.5 |
175
221
280 |
350
441 |
560 | |
|
