| PG EARTH LEAKAGE CIRCUIT BREAKER |
| |
| |
|
|

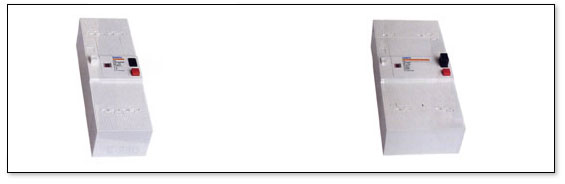

 PG230 PG430
APPLICATION |
| PG230 & PG 430 earth leakage circuit breakers, the rated current is adjustable form 10A up to 60A. User can select suitable current for better protection against overload and short circuit. The products comply with NFC1450. |
| SPECIFICATIONS |
|
Type |
(PG230)PG215,230,245,260 |
(PG430)PG415,430,445,460 |
|
Poles |
2P |
4P |
|
Rated voltage(V) |
450V/440V |
|
Rated current(A) |
10,15,20,30,45,50,60A Ajustable |
|
Leakage motion current(mA) |
300mA,500mA |
300mA,500mA |
|
Leakage dead current(mA) |
150mA,250mA |
150mA,250mA |
|
Standard |
NFC 61450 | | |
|
