Application

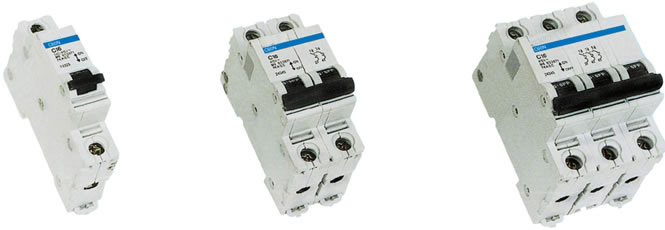

C60N mini circuit breaker belongs to the advanced level of the nineties in the international instead of the old generation of C45N.They have protective functions as shortage and overloading, and are used in lighting distribution system in industry, commerce and welling, and protecting fractional electric motors. And they also have many merits of high protective grade (up to IP20),high breaking capacity, good reliability of sensitive action, convenient multi-pole assorting, long using life etc. they are mainly adapted to circuit of AC 50HZ,230V in single pole,400V in double, three, four poles for protecting overloading and shortage. Meanwhile, they are also used in turning on or off the electric apparatus and lighting circuit under the normal condition.

Technical data Standard:IEC898: Rated current (IN): up to 40A Rated Voltage (Un): 230/400V AC Breaking capacity: s

Tripping characteristics: IEC898 B curve: the magnetic releases operate between 3 and 5 In C curve: the magnetic releases operate between 5 and 10 In D curve: the magnetic releases operate between 10 and 14 In Electrical endurance: Connection capacity: Rigid conductor 25mm2 Flexible conductor 16mm2

Order information

• MCB with neutral pole (1P+N in 4 modules, 3P+N in 8 modules) shall be made to order
