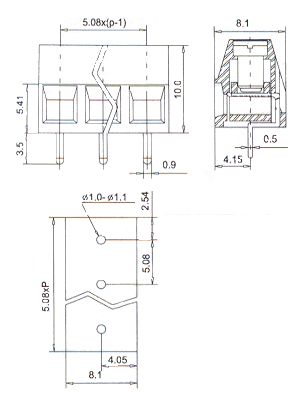

| JK127-500、JK127-508 Terminal Block |
| Material |
|
| Contact |
:Steel Stamping Zinc Die |
| (metal housing) |
Casting or Brass |
| |
Machined ( Option ) |
| Terminal screw |
: Steel Galvanized and |
|
chormatized of Nickel |
|
plated or Tin plated |
| |
(Standard option) |
| Suface Pin |
: Brass With Tin Plated |
| Surface body |
:Tin Plated |
| Insulator body |
: Polyamide(Glass filled) |
| (housing) |
(UL94V-0) |
| Electrical |
|
| Voltage rating |
: 250VAC |
| Current rating |
: 10Amps/way max. |
| Insulation resistance |
: 5000MΩ/1000V |
| Wire range |
: 16-26AWG |
| Operation temperature |
: -33℃ to+120℃ |
| Torque |
: 4kg-cm/M2.5 | |
 | | |
|
