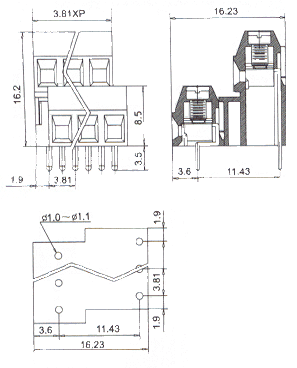

JK125A-381 Terminal Block |
Material |
|
Contact |
: Brass Machined |
(metal housing) |
|
Terminal screw |
: Steel Galvanized and |
|
chormatized of Nickel |
|
plated or Tin plated |
|
(Standard option) |
Solder Pin |
: Brass with Tin plated |
Insulator body |
: Polyamide(Glass filled) |
(housing) |
(UL94V-0) |
|
|
Electrical |
|
Voltage rating |
: 150VAC |
Current rating |
: 6Amps/way max. |
Insulation resistance |
: 5000M¦¸/1000V |
Wire range |
: 16-24AWG |
Operation temperature |
: -33¡æ to+120¡æ |
Torque |
: 2kg-cm/M2 | |
| | |
|
