Electrical Items >> PCB Terminal Block >> JK305-500 PCB Terminal Block ¡¡


5.00/10.00mm

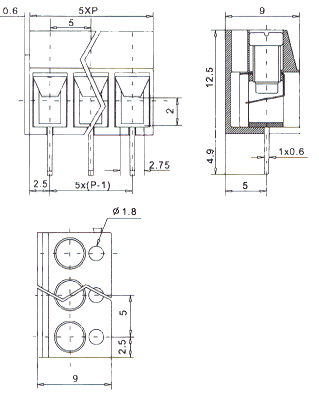

JK305-500 Terminal Block with UL
Material
Contact : Brass(CuZn)
(metal housing)
Terminal screw : Steel Galvanized and
chormatized of Nickel
plated or Tin plated
(Standard option)
Wire guard : Brass/Stainless steel
Suface of solder tail : Tin plated
Insulator body : Polyamide(Glass filled)
(housing) (UL94V-0)

Electrical
Voltage rating : 250VAC
Current rating : 16Amps/way max.
Insulation resistance : 5000M¦¸/1000V
Wire range : 14-22AWG
Operation temperature : -33¡æ to+120¡æ
Torque : 4kg-cm/M2.5
Satety apporval
