桥式整流器 Bridge Rectifiers

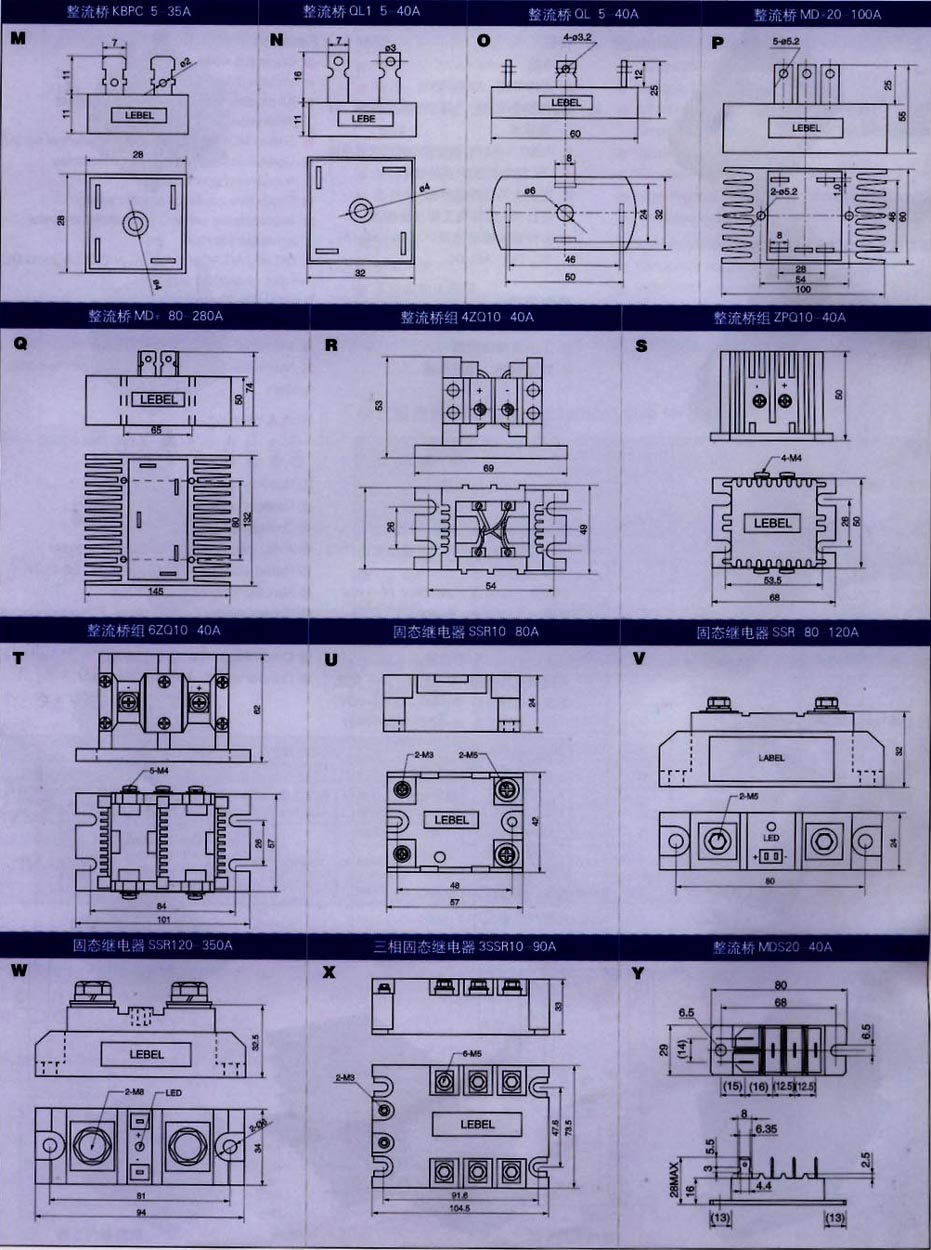

特征   Features ■电流：5-300A   ■Current:5-300A ■反向重复峰值电压:100-5000V   ■Voltage:100-1600V ■小型通用尺寸“真空+充氢保护”焊接技术   ■All models feature the same compact dimensions to provide a uniform mounting pitch ■玻璃钝化二苄酒?/td>   ■Glass passivated diode chips ■优秀的力量／体积比率   ■Excellent power/volume ratio ■高热的传导性封装   ■High thermal conductivity package,electrically insulated case       典型应用   Typical Applications ■整流电源   ■Eliminator supply ■工业自动化控制   ■Industrial automatic control ■数控机械、遥控系统   ■Numierial-controlled machinery,telecontrol system       桥式整流器特性 Characteristics valve for bridge rectifiers 型号Type 正向峰值电压 反向重复峰值电压 反向重复峰值电流 绝缘电压 工作结温 重量 外形 VFM V VRRM V IRRM mA VISOL (V) Tj ℃ Wejght g Outline KBPC5A,10A,15A,  20A,25A,30A,35A ≤1.30 100-1600V 5 2500V -40℃ ~ 150℃ 29 A1 QL1-5A,10A,15A, 20A,25A,30A,40A ≤1.30 100-1600V 5 2500V 35 A2 QL2-5A,10A,15A, 20A,25A,30A,40A,50A ≤1.30 100-1600V 5 2500V 47 A3/C1 QL3-20A,40A, 60A,100A ≤1.40 100-1600V 7 2500V 315 C2 QL4-150A,200A, 250A,300A ≤1.50 100-1600V 10 2500V 1200 C3 SQL3-20A,40A, 60A,100A ≤1.40 100-1600V 7 2500V 315 C4 SQL4-150A,200A, 250A300A ≤1.50 100-1600V 10 2500V 1200 C5 ZPQ-10A,20A,30A,40A ≤1.30 100-1600V 5 2500V 220 C6 4ZQ-5A,10A,20A, 30A,40A ≤1.30 100-1600V 5 2500V 150 C7 6ZQ-10A,20A, 30A,40A ≤1.30 100-1600V 5 2500V 395   整流桥KBPC 5-35A 整流桥QL1 5-40A 整流桥QL2 5-50A 整流桥QL3/SQL3 20-100A 整流桥QL4/SQL4 150-300A 整流桥组4ZQ10-40A 整流桥组ZPQ10-40A 整流桥组6ZQ10-40A 整流桥MDS3 20-40A 单相/三相整流桥模块　Single/Three Phases Rectification Bridges Modules MDQ 型号Type I0 @TC VRRM VTM@ITM IRRM IF(AV) IF(RMS) IFSM Rjc Tjm Viso 外形 A ℃ V V A mA A A A×10 3 ℃/W ℃ VA.C Outline MT×100 50 100 600-2000 1.55 75 8 25 60 0.75 0.55 150 2500 S MT×150 75 100 600-2000 1.47 110 8 38 70 1.00 0.32 150 2500 Q MT×200 100 100 600-2000 1.53 150 10 50 86 1.50 0.24 150 2500 Q MT×250 150 100 600-2000 1.47 230 10 75 106 2.50 0.15 150 2500 Q 注：*水冷 water-cooling                     MDS 型号Type I0 @TC VRRM VTM@ITM IRRM IF(AV) IF(RMS) IFSM Rjc Tjm Viso 外形 A ℃ V V A mA A A A×10 3 ℃/W ℃ VA.C Outline MDS50 50 100 600-2000 1.55 50 8 17 39 0.75 0.55 150 2500 I/ K MDS75 75 100 600-2000 1.47 75 8 25 47 1.00 0.32 150 2500 I/ K MDS100 100 100 600-2000 1.53 100 10 33 51 1.50 0.24 150 2500 I/ K MDS150 150 100 600-2000 1.50 150 10 50 71 2.50 0.15 150 2500 L/ M 　　     特点   Features ■ 芯片与底板电气绝缘，2500V交流电压   ■ The chip and base-board are electric-insulation, 2500v AC voltage ■ 国际标准封装   ■ Packing with international standard ■ 焊接结构，优良的温度特性和功率循环能力   ■ The welding structure, super temperature properties and power-cycling capability ■ 安装简单，使用维修方便   ■ The installation,use as well as maintenance are simple ■ 体积小，重量轻   ■ Small volume, light weight ■ 最高工作结温达150℃   ■ The highest work temperature could achieve 150℃ ■ 正向压降小   ■ Forward-direction voltage are decreasing       典型应用   Typical-application ■ 仪器设备的直流电源   ■ The DC power of instrument equipments ■ PWM变频器的输入整流电源   ■ The PWM changes the importation of the machine of commutates the power supply ■ 直流电机励磁电源   ■ Direct current electrical engineering magnetoelectricity source ■ 开关电源的输入整流   ■The importation of the switch power supply commutates ■ 软启动电容充电   ■It is soft to start the electric capacity refreshes ■ 电气拖动和辅助电流   ■The electricity drags along to move with lend support to the electric current ■ 逆变焊机   ■ ■ 电流充电直流电源   ■The electric current refreshes the direct current power supply     说明   Instruction ■ VRSM=VRRM+200V   ■ VRSM=VRRM+200V ■ 除VFM、Viso外，表中参数皆为Tjm下的测试值。   ■ Exception VFM、Viso, other parameters inside form all are the tested ＆#118alue below Tjm ■ I2t=I2TSMtw/2；tw＝正弦半波电流底宽。在50Hz， I2t(10ms)=0.005I2FSM(A2S)   ■ I2t=I2FSMtw/2；tw:the tw inside equation is sine semi wave current base-width, in the case of 50Hz, I2t(10ms)=0.005I2FSM(A2S) ■ 当使用在频率为60Hz情况下，IFSM(8.3ms)=1.066IFSM(10ms)   ■ If used in the case of frequency below 60Hz,IFSM(8.3ms)=1.066IFSM(10ms) I2t(8.3ms)=0.943I2t(10ms)   I2t(8.3ms)=0.943I2t(10ms)
