普通晶闸管 Phase Control Thyristors (KP Stud model)
 特征  Features
 ■通态平均电流:5-500A  ■IT(AV)=5-500A
 ■正反向重复峰值电压:100-5000V  ■V DRM/V RRM=100-5000V
 ■全密封陶瓷-金属螺柱型结构   ■Hermetic metal case with ceramic insulator
 ■全封闭玻璃-金属螺柱型结构  ■Hermetic glass-metal seal
 ■符号JB/T8950.2-1999标准  ■Conform to national standard JB/T8950.2-1999
 ■符合IEC国际电工委员会标准  ■In accordance with IEC international electrical committee standard

 典型应用  Typical Applications
 ■直流电机控制  ■DC motor controls
 ■直流电源控制  ■Controlled DC power supplies
 ■交流开关及温度控制  ■AC switch and thermal control
 ■同步电机励磁  ■Synchronous motor excitation

型号Type
通态平均电流IT
(AV) A
通态有效值电流
IFRMS A
通态峰
值电压
VTM V
正反向重复峰值电压
VRRM V
正反向重复峰值电流
IDRM mA
触发电流
IGT mA
触发电压
VGT V
维持电流
IH mA
通态电压临界上升率
dv/dt V/μs
通态电流临界上升率
di/dt A/ms
工作结温
Tj ℃
结壳热阻
Rjc ℃/W
重量
Wejght g

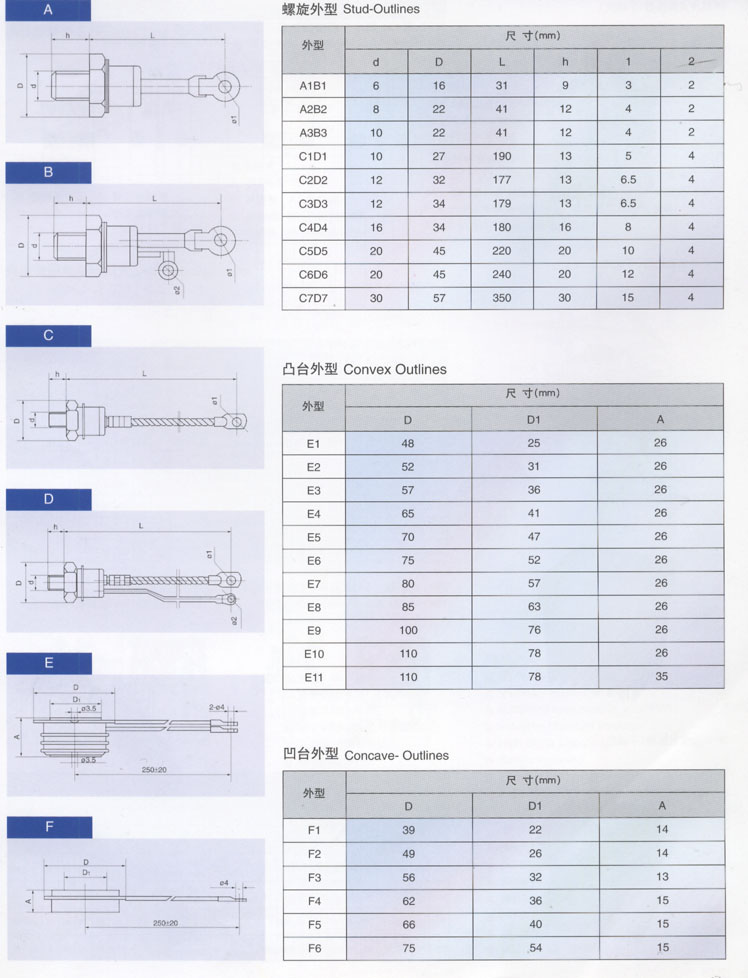

外形
Outline
KP5A
5
8
≤2.2
100~2000
≤8.0
5~45
≤2.5
5~45
≥500
-
-40~+125
≤3.0
12
B1
KP10A
10
16
≤2.2
100~2000
≤8.0
5~45
≤2.5
5~45
≥500
-
-40~+125
≤2.5
27
B2
KP20A
20
32
≤2.2
100~2000
≤8.0
5~45
≤2.5
5~45
≥500
-
-40~+125
≤1.0
29
B3/D1
KP30A
30
48
≤2.2
100~2000
≤10
5~50
≤2.5
5~50
≥800
≥100
-40~+125
≤0.5
112
D2

KP50A

50
80
≤2.4
100~2000
≤10
5~150
≤2.5
5~150
≥800
≥100
-40~+125
≤0.14
142
D3
KP100A
100
160
≤2.4
100~2000
≤10
5~200
≤2.5
5~200
≥800
≥100
-40~+125
≤0.11
207
D4
KP200A
200
320
≤2.6
100~2000
≤10
5~200
≤2.5
5~200
≥800
≥100
-40~+125
≤0.11
327
D5
KP300A
300
480
≤2.6
100~2000
≤30
5~200
≤2.5
5~200
≥800
≥100
-40~+125
≤0.08
472
D6
KP500A
500
800
≤2.6
100~2000
≤30
5~200
≤2.5
5~200
≥800
≥100
-40~+125
≤0.04
927
D7
